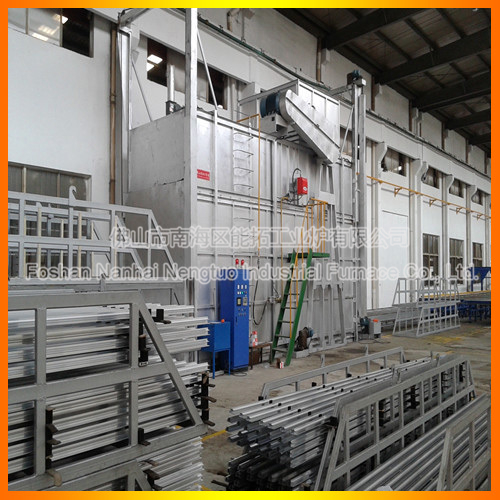

Gas fired aging furnace
Features of aging furnace:
1. Energy saving
2. High efficiency
3. High insulation performance (temperature rise of outer wall:<+-15 Celsius degree)
4. Full automation (PLC control)
5. Low fault
6. Long service life
7. 1 year’s warranty
8. Engineers are available to service machinery overseas.
Specifications of aging furnace:
|
Value |
|
|
Brand |
NT |
|
Model |
|
|
Fuel |
gas/oil/electricity |
|
Furnace capacity |
1-20T |
|
Types |
single door aging furnace and double door aging furnace |
|
Max. temperature |
250 Celsius degree |
|
Temperature evenness |
5 Celsius degree |
|
Heating-up time |
about 45 min |
|
Hot air circulation method |
forward/backward longitudinal circulation |
|
Circulation fan |
multi-wing centrifugal fan |
|
Insulation performance |
the temperature rise of furnace outer wall max. 15 Celsius degree |
|
Charging method |
by pulling/roller type charging car driven by motor |
|
Control method |
PLC+HMI automatic control |
|
Temperature record |
multi-channel paperless recorder with USB interface |
|
Voltage |
220V/phase |
|
Power |
50HZ/phase |
|
Place of origin |
Foshan, Guangdong province, China |
|
Certification |
CE, ISO9001 |
|
Warranty |
1 year |
Applications of aging furnace:
It is used for aging heat treatment process of the profile to reach the according hardness.
After-sales service:
Professional engineers and technicians are available to service machinery at spot.
